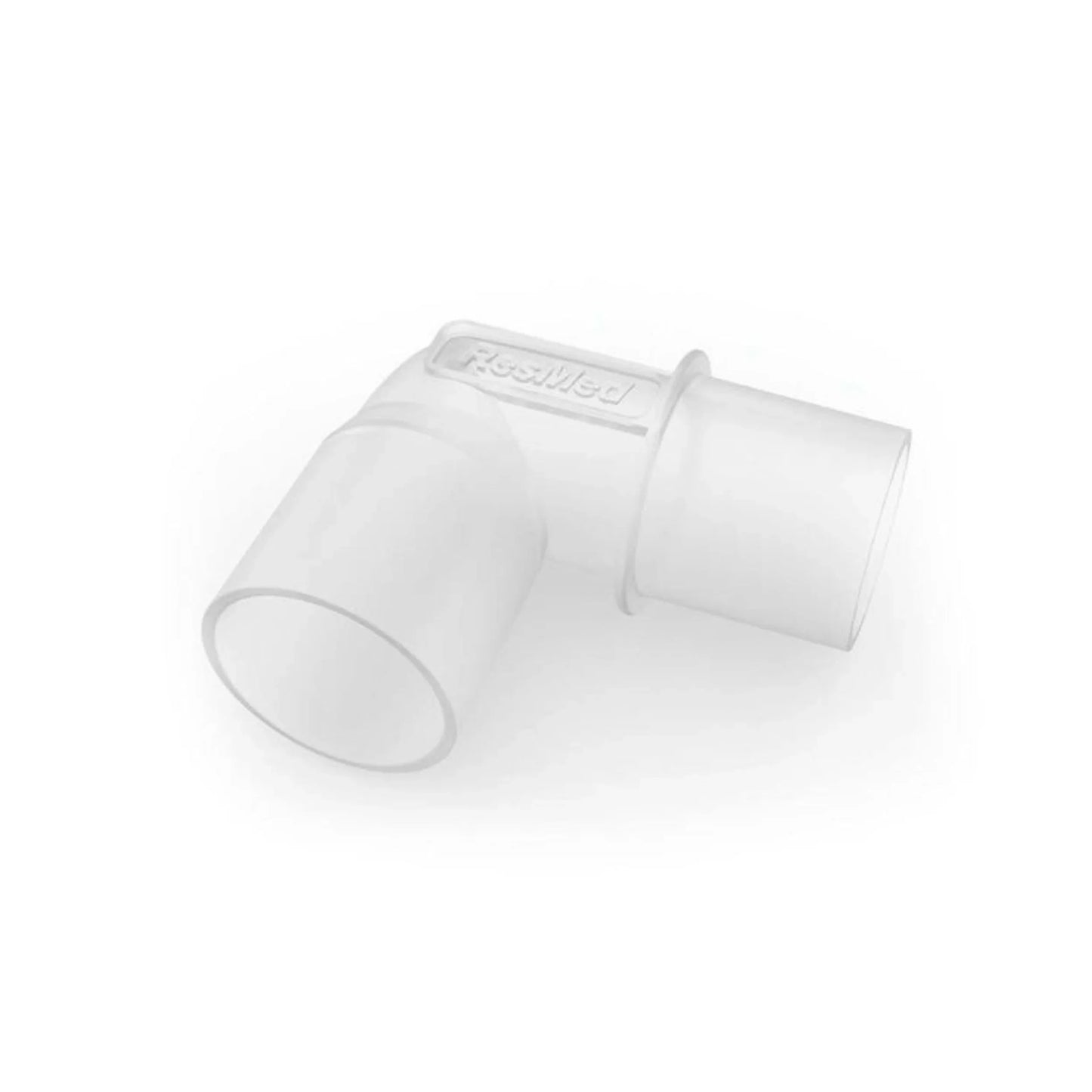

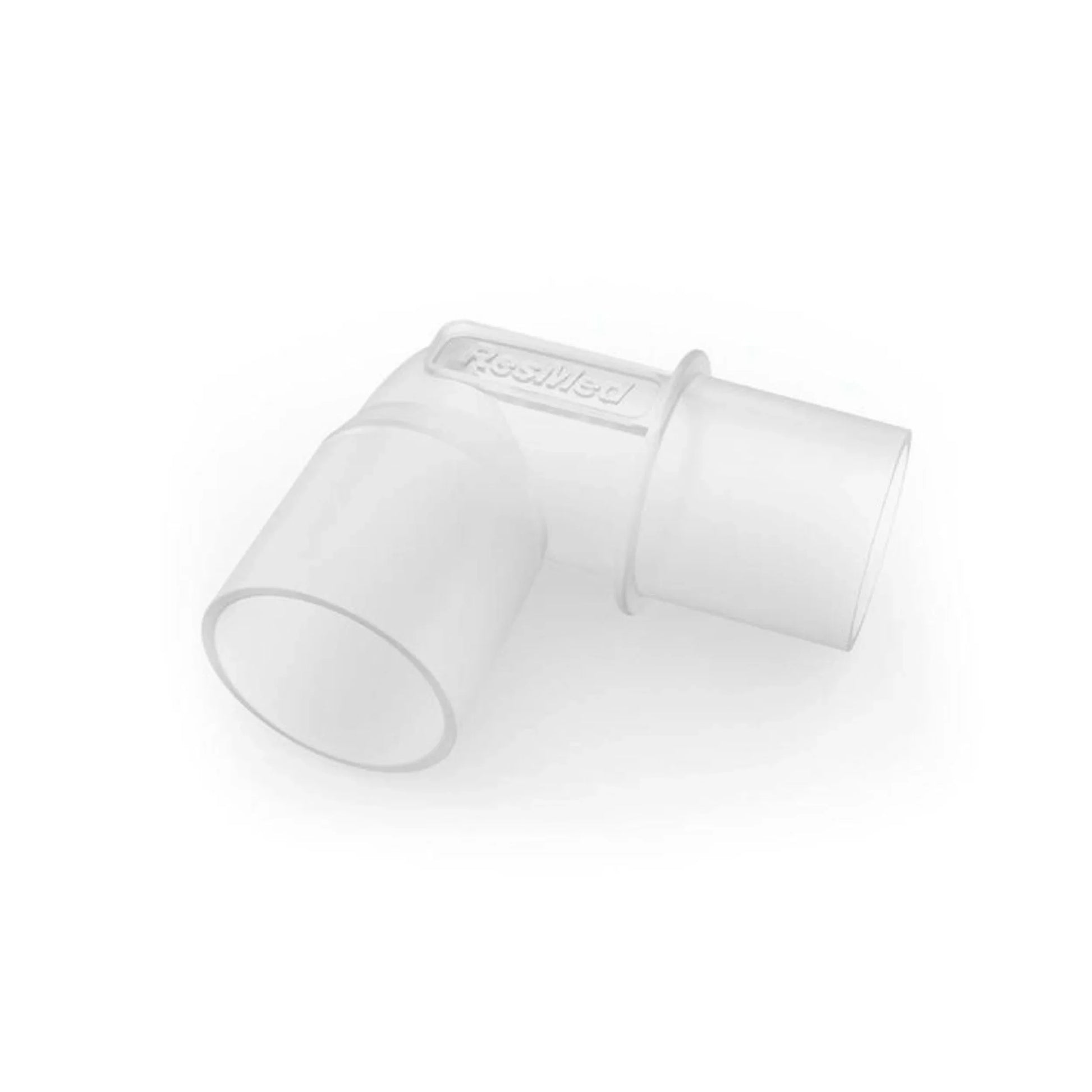

• Full view of the resmed tube elbow

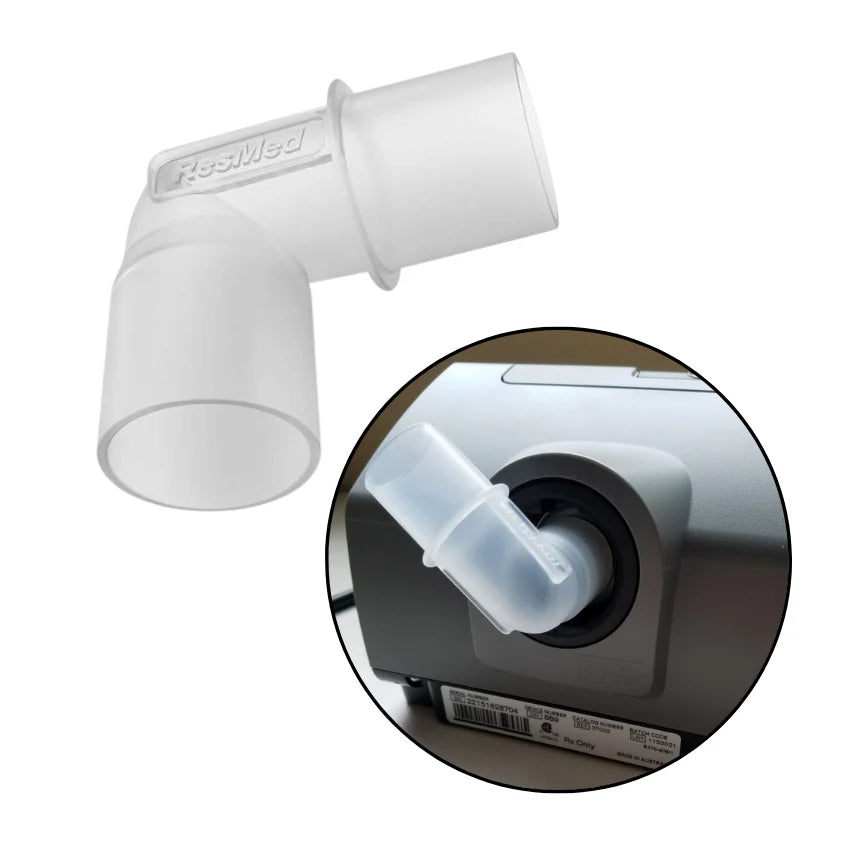

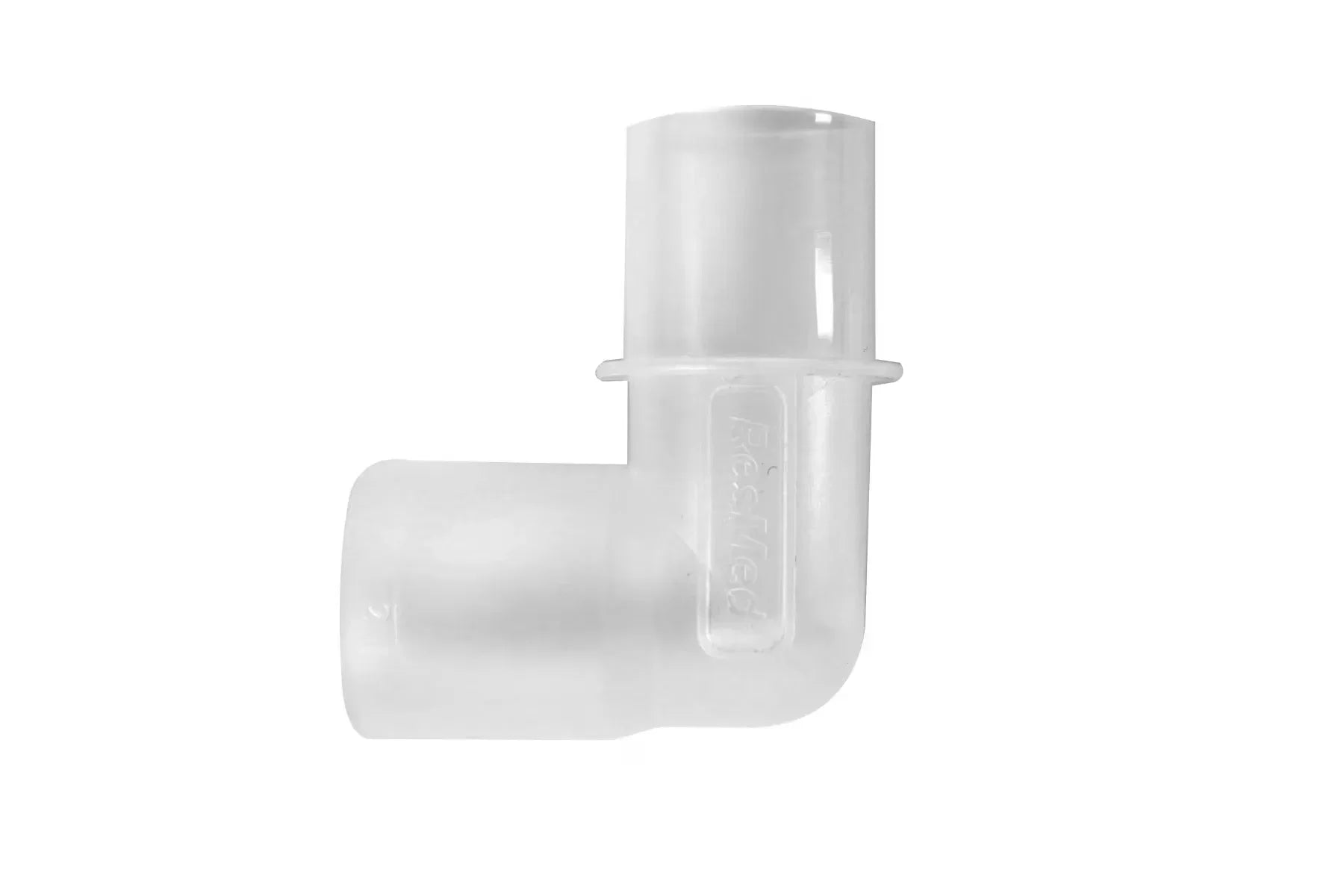

  • Connecting elbow for the resmed cpap machines

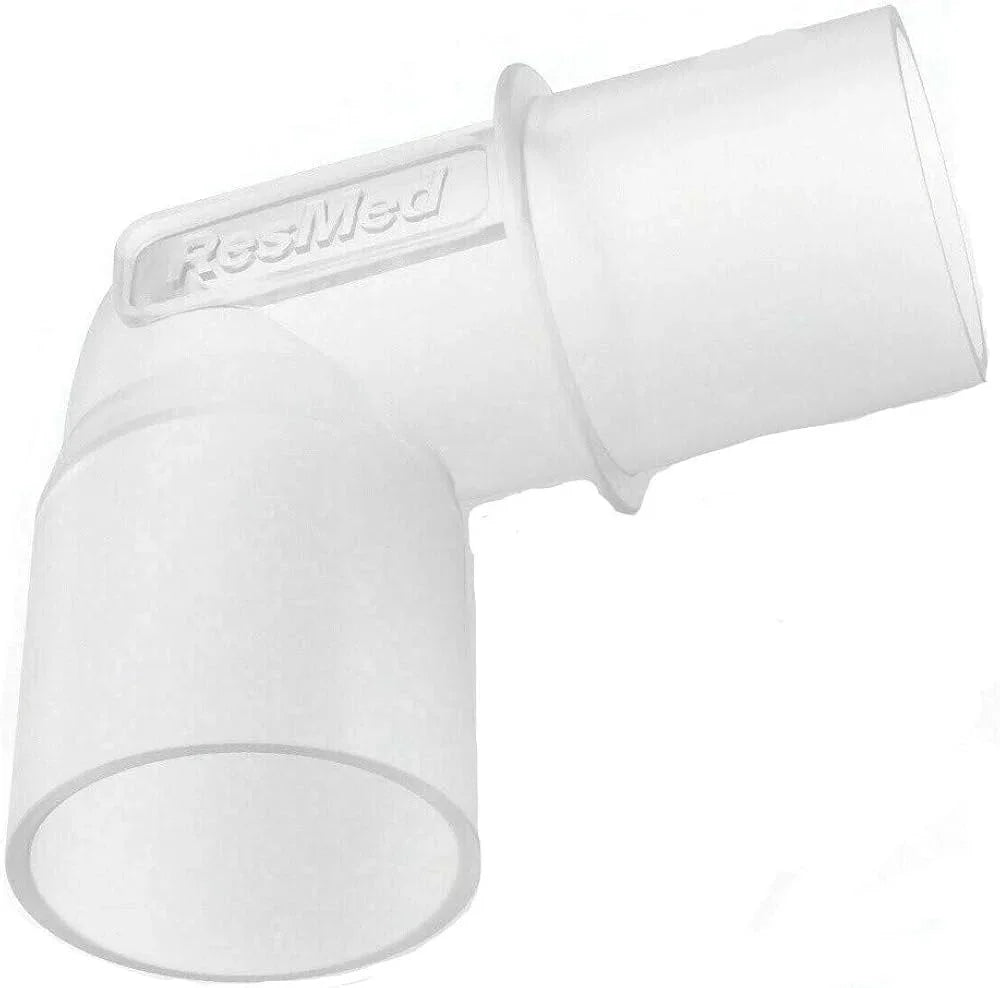

  • CLose up of the Resmed tube elbow

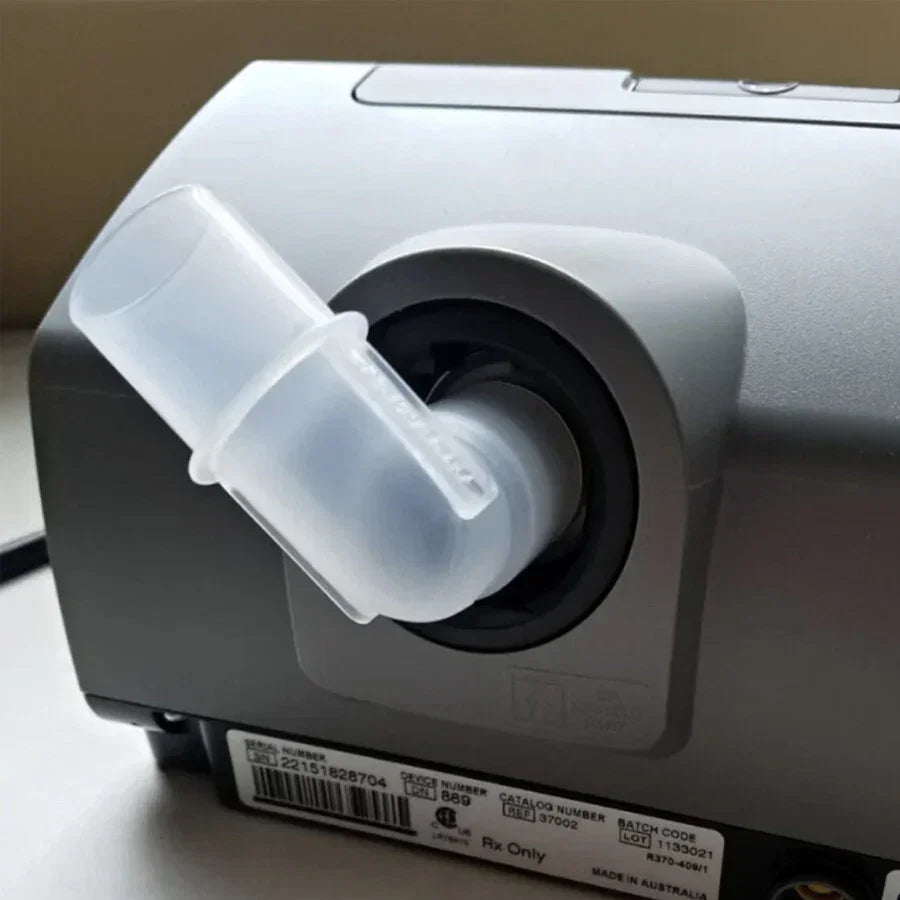

  • Closeup of the tubing elbow showing where and how it connects to the machine
1 4
🇦🇪 Shipped from our Business Bay showroom — not overseas. Why it matters →

ResMed

ResMed Tubing Elbow for AirSense 10/AirSense 11 Series CPAP/BiPAP Machines

ResMed Tubing Elbow for AirSense 10/AirSense 11 Series CPAP/BiPAP Machines

AED 85.00
AED 85.00
Sale Sold out
Shipping calculated at checkout.
Pay with Tabby Split your purchase into 4 easy payments.
Available at checkout.

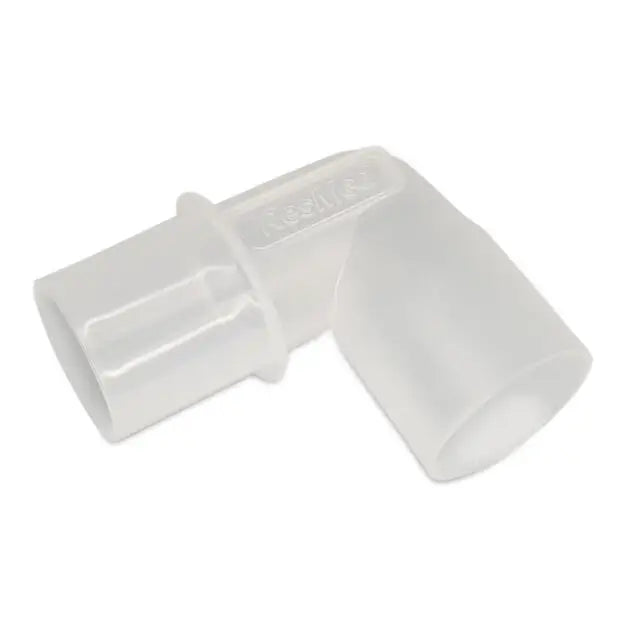

The ResMed Tubing Elbow is the genuine 90° connector for AirSense 10, AirCurve 10, and AirSense 11 CPAP and BiPAP machines — allowing your standard CPAP tube to exit the machine at a right angle rather than straight back. This reduces bending stress at the tube-machine junction, saves bedside table space by directing the tube sideways, and creates a cleaner hose routing pathway from machine to pillow. Ships standard with all new AirSense 10 and AirCurve 10 machines. Available here as a replacement when the original is lost or cracked. Works with standard non-heated SlimLine and 22mm tubes only — not compatible with ClimateLineAir heated tubes. Part number 37394. Replace every 6 months.

🇦🇪 Same-day delivery in Dubai · Next-day UAE-wide · AED 85 incl. VAT
Available for same day delivery in Dubai — order before 3:00 PM
Pickup available from our Business Bay showroom — usually ready within 1 hour
Express delivery
Dubai & UAE
2-year warranty
On all machines
100% genuine
Authentic products
Secure checkout
SSL encrypted
Visit our showroom
Business Bay, Dubai
Expert support
Sleep specialists on call
View full details

Product Features

Details

ResMed Tubing Elbow (AirSense 10/11) — Overview & Specifications

Part Number37394
Compatible MachinesAirSense 10 (all), AirCurve 10 (all), AirStart 10, AirSense 11
Not Compatible WithAirMini · Non-ResMed machines · ClimateLineAir heated tubing
Function90° tube exit at machine outlet — redirects hose sideways to reduce strain and save bedside space
Tube CompatibilityStandard non-heated tubes — 15mm SlimLine and 22mm standard hoses
Heated Tube CompatibleNo — does not fit ClimateLineAir 10 or 11 heated tubes
Supplied Standard WithAll new AirSense 10 and AirCurve 10 machines
Replacement ScheduleEvery 6 months or when cracked/loose

Key Features

📐
90° Tube Routing
Redirects tube exit from straight-back to sideways — cleaner hose pathway, less strain on the machine outlet, and a more organised bedside setup.
🛡️
Protects the Machine Outlet
Eliminates constant bending stress at the tube-machine junction — prevents the wear and loosening of the outlet connection over time.
🗂️
Saves Bedside Space
Tube exits the machine at a right angle — frees up space on the nightstand and reduces tube clutter around the machine body.
🔄
Genuine ResMed Part
OEM part included with all new AirSense 10 machines — this listing is the replacement for when the original is lost or damaged.

⚠️ Not for heated tubes. The tubing elbow is only compatible with standard non-heated SlimLine and 22mm tubes. ClimateLineAir 10 and 11 heated tubes do not fit this elbow.

Specs

Technical Specifications — ResMed Tubing Elbow

Part Number37394
Compatible MachinesAirSense 10 (all), AirCurve 10 (all), AirStart 10, AirSense 11
Not Compatible WithAirMini · ClimateLineAir heated tubes · non-ResMed machines
Angle90° — redirects tube from straight-back to side-exit
Tube CompatibilityStandard non-heated SlimLine (15mm) and standard 22mm tubes
Heated TubeNot compatible
Standard InclusionShipped with all new AirSense 10 and AirCurve 10 machines
Replacement ScheduleEvery 6 months or when loose/cracked
